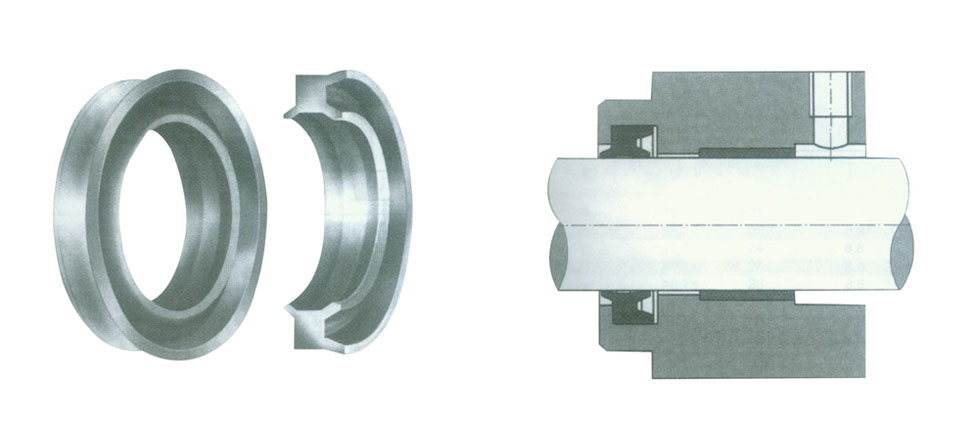

The design of the outer shape of the EM-type piston rod seal/dust seal meets the requirements of small cylinders, meaning that the EM type has smaller dimensions and lower friction.
Main advantages:
◆ It combines two functions: sealing and dust prevention.
◆ The minimum space requirements must satisfy safety availability and achieve ideal contour smoothness.
◆Simple structure, effective manufacturing cost.
◆ There are no additional axial positioning requirements.
◆ Due to the special geometric dimensions of the sealing and dust-proof lip combined with special materials, the EM type piston rod/dust seal can also be used in dry and oil-free air after initial lubrication. · The optimized adjustment of the special functional lip ensures smooth operation.
◆ As the component is composed of a single polymeric material, it is corrosion-free.

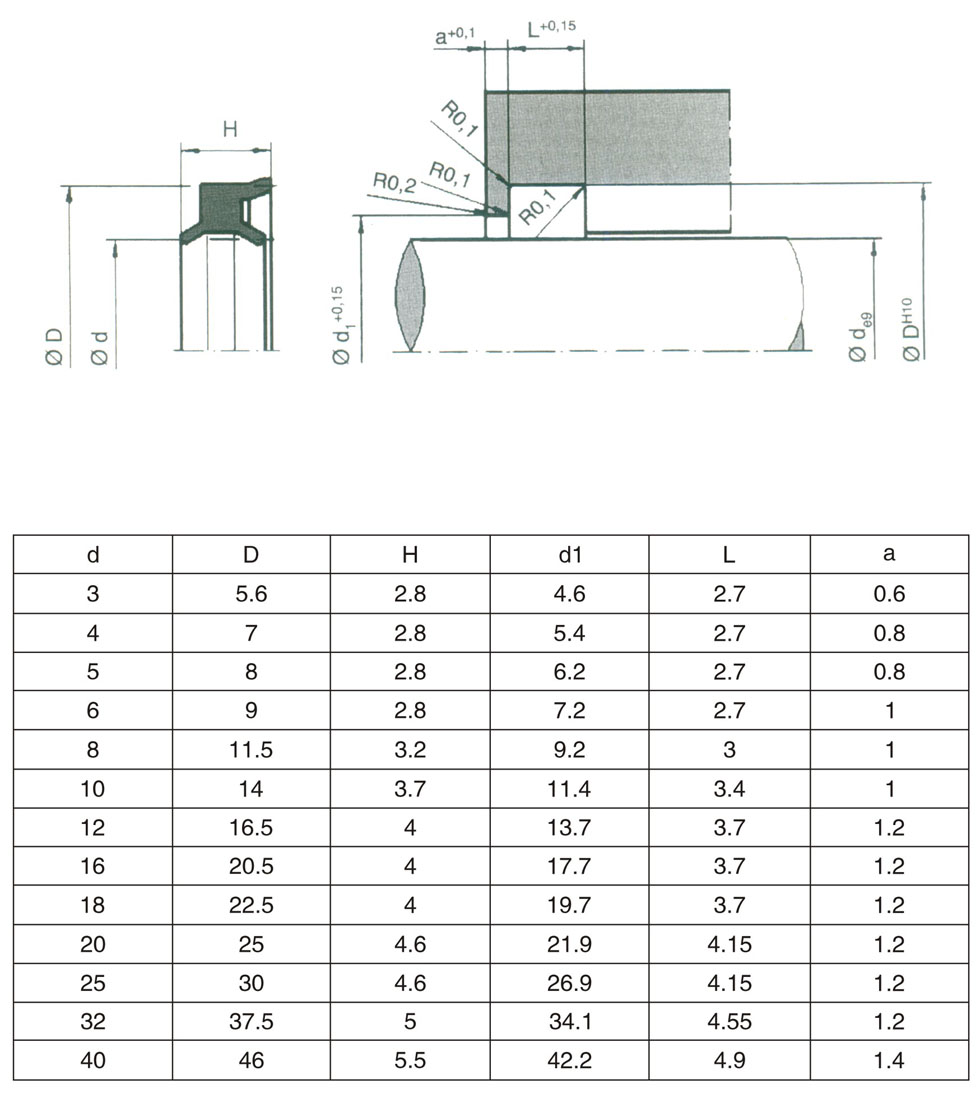

Application scope: Small pneumatic piston rod seal/dust seal Working pressure: ≤10Mpa Operating temperature: -35~+100℃ Speed: ≤1m/s Medium: Lubricated air and dry and oil-free air (after initial assembly lubrication) Material: The standard material is the nano-modified high-performance polyurethane material XA-2092 developed by Xipul Installation: The EM type self-positioning piston rod seal/dust seal can be manually or automatically installed into the groove when the piston rod is not installed. During assembly, care should be taken to prevent the dust and sealing lips from being damaged by sharp edges. Initial lubrication is essential for maintaining long-term service life
