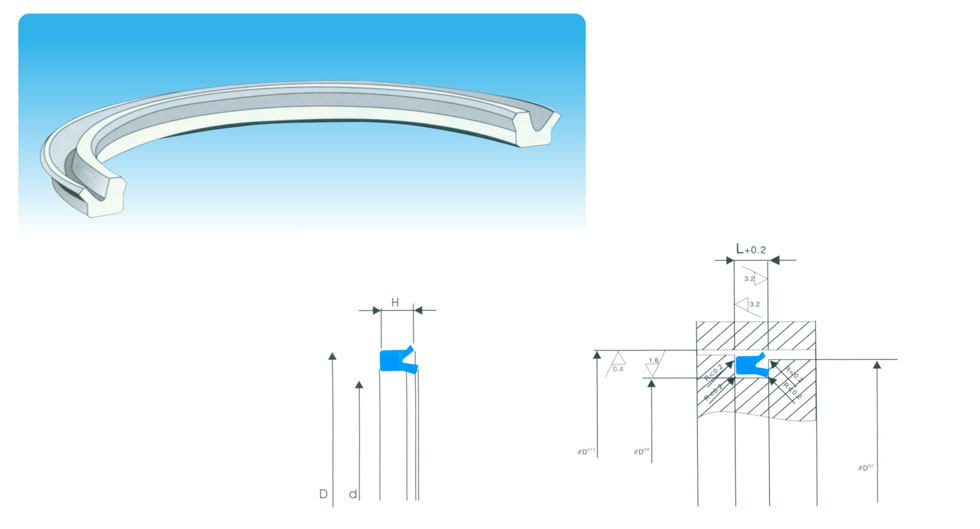

Description: Z8 pneumatic piston seal is single-acting lip seal for pistons in pneumaticcylinders and valves. ltreguires small dimensions. The standard series of profile Z8 conforms to thecylinder of lS0 3320 and CETRO RP 52P,RP43P and RP53P
Advantages
Good sealing performance in small installation grooves.A
Smooth running thanks to optimum lubricant-retaining sealing lip geometry.
Low static and dynamic friction.
-Pressure relief grooves at the outer diameter / nubs on thepiston side of the dynamic sealing tip ensure optimal functionwith flow-controlled exhaustair.
-For use in dry and oil-free air.
-Suitable for piastic thanks to special design of the static sealing area.
High functional reliability due to lip seal design.
Easy installation.5e
- Also suitable for cylinders with cushioning
Technicat Data
Operating conditions
Presure:s1.2Mpa.
Temperature:NBR:-20-+80℃
PU:-35~+80℃
Speed:s1.0m/s
Media:Air
Material
Material: RP/FKM/TPU
