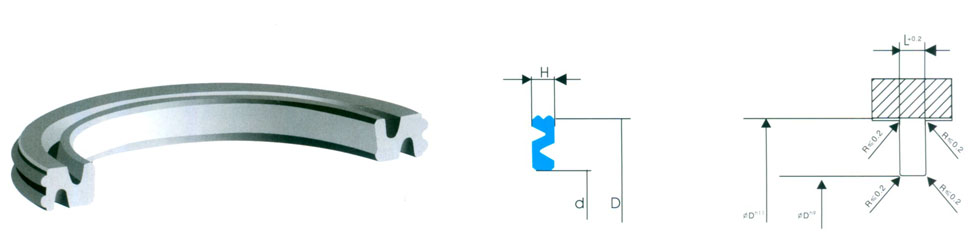

Description: PZ pneumatic piston seal has been developed for use in pneumatic cylingdersand valves. The double-acting cylinder seal requires only small housing dimensions. Lowfriction cylinger seal with two micro sealing edges and grease deposit in between.
Advantages
-Good sealing performance in smal!
installation grooves.
- Smooth running thanks to optimumlubricant-retaining sealing lip geometry-For use in dry and oil-free air. initiallubrication on assembly is essential forlong service life.- Easy installation.
Technical Data
Operating conditions
Presure:s1.2Mpa,
Temperature:20~+80℃
Speed:≤1.0m/sMedia: Air
MaterialMaterial: RP/FKM/TPU
