F4 GUIDE RING
Standard from:GB/T15242.2-94
Usage: This standard guide ring canused in all kinds of hydraulic andPneumatic cylinders for guide orback up for the piston or rod.,Material: PTFE+ Bronze
Temperature:-180~+250°C
Pressure:63MPa
Media: OlL,AIRStandard from:GB/T15242.2-94

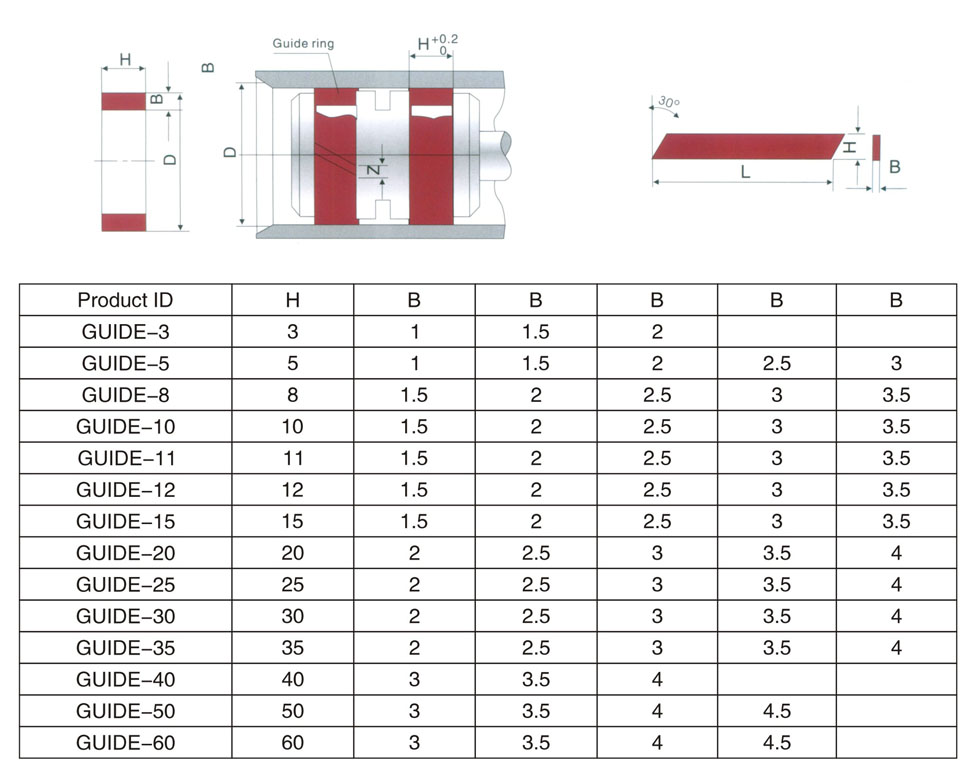

The length of Guide Ring for piston L=π ( D+B )-Z
The length of Guide Ring for piston rod L=π ( D+B)-Z
