Other Seals

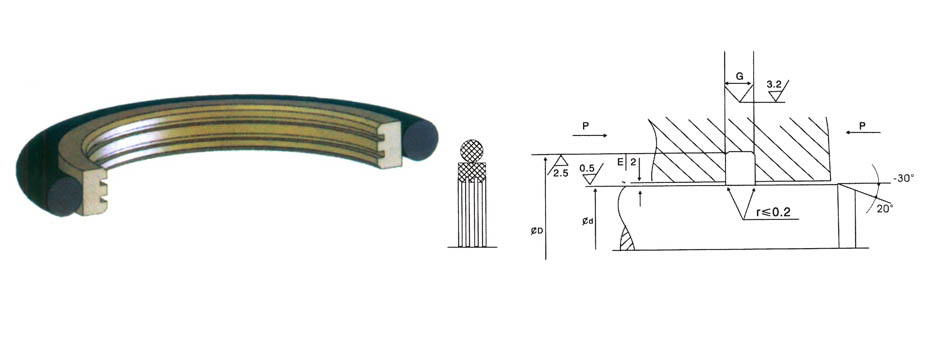

Description: BRS consists of a seal ring and is activated by an O-ing as an elastic energizing element. The contactsurface profile of the seal ring is specially designed for use under high pressures andat low sliding speeds.BNS is the preferably used as a double acting rotary seal for hydraulic and pneumatic equipment in sectors such as.rotary distributors, high pressure valve stems, manipulators, pivoting motors in mobile hydraulic and machine tools.hydraulic motors and so on.
ADVANTAGES
-Available for internal and external sealing applications
- Low friction
Stick-slip-free starting, no sticking-High abrasion resistance and dimensional stability-Simple groove desigh, small groove dimensions
-Easy installation
TECHNICAL DATA
Operating conditions
Pressure:<40Mpa
Temperature:-35~+200℃
(FKM O-Ring should be used when temperature is over 100℃)
Speed: <0.2m/s.
Media: almost alt media.
MATERIAL:
Material: Seal ring: PTFE+BRONZEO-Ring:NBR/FKM
