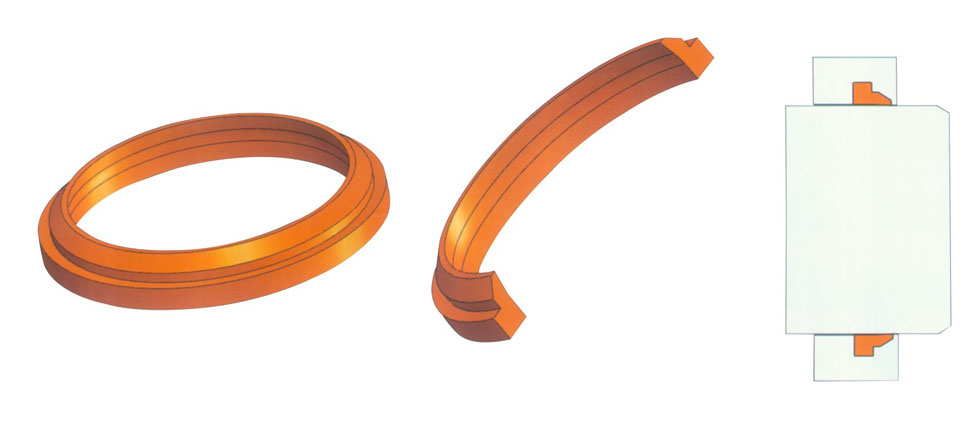

The function of the GHP dust seal is to prevent the entry of dust, dirt, sand, and metal shavings. Through its special design, it prevents dust and scratches, protects the guiding components, and extends the service life of the seal. The diameter with interference ensures that the seal is tightly fitted into the groove, thereby preventing the intrusion of impurities, particles, and moisture.
The GHP dust seal provides a sealed cavity for the cylinder body without requiring screws, frames, strict tolerances, or metal inserts, thus preventing corrosion issues that may occur with metal frame dust seals. The grooves also do not require strict tolerances.
Application scope: GHP dust seals are used on axial control rods, plungers, and shaft sleeves of hydraulic cylinders and pneumatic cylinders.
Operating temperature: -35~+100℃ Surface speed: ≤2m/s Installation: The GHP type xipuli dust seal is easy to install into the groove. It is important to avoid contact between the lip of the dust seal and the piston rod hole or other connecting components. The lip of the dust seal should be installed outside the housing to facilitate the removal of dirt.
Materials: XA-2095 is a high-performance nano-polyurethane material independently developed by Xipuli. Compared with other polyurethane materials currently available on the market, it exhibits superior resistance to high and low temperatures and enhanced hydrolysis resistance. If you have special requirements (temperature, speed, use in water, HFA liquid, HFB liquid, etc.), please contact our company for recommendations on suitable materials and structures.
