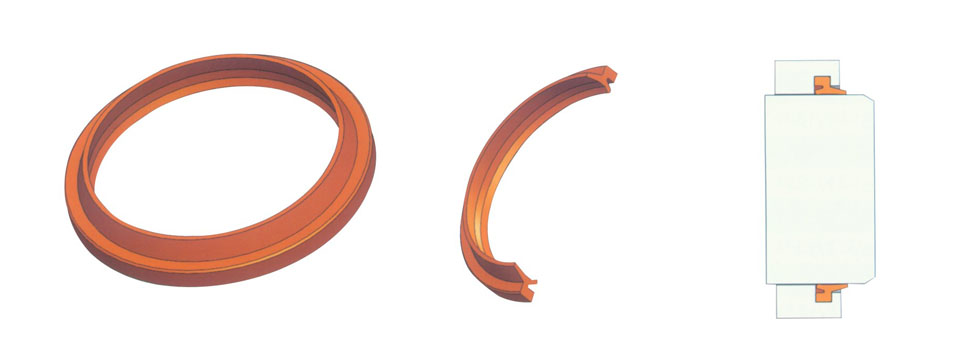

The GFS-type xipuli dust seal is an upgraded product of the J-type frameless dust seal, which is a standard product in the petrochemical industry under the former Ministry of Chemical Industry. Its main function is to prevent the entry of powder, dirt, sand, and metal shavings. This is achieved through a special design that significantly reduces scratching, protects the guiding components, and extends the service life of the seal. The GFS-type double-lip dust seal seals the piston along the cylinder direction. It does not require special screws or brackets for installation, does not demand strict tolerances, and does not need metal inserts. The dust seal is a continuous ring shape that can be easily installed into the groove. In addition, the sealing lip facing the medium reduces residual oil film, and the polyurethane rubber material ensures excellent characteristics during dry friction, increasing wear resistance. It also has good resistance to ozone and radiation caused by climatic conditions, extending its service life.

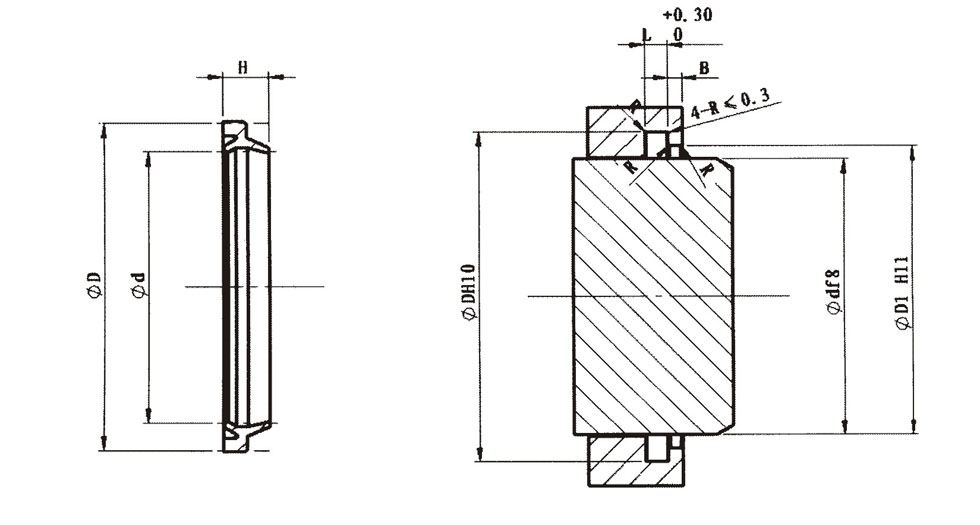

Installation: The GFS double-lip dust seal can be easily installed into a groove with a simple structure. It is wear-resistant and has a long service life. It is important to avoid contact between the lip and the piston rod eyelet or other connecting components. Additionally, it is best to install the dust seal lip outside the housing, as this makes it easier to remove contaminants.
Application scope: GFS double-lip dust seals are widely used in forging hydraulic presses, rubber vulcanizing machines, as well as various mechanical hydraulic cylinders and pneumatic cylinders.
Operating temperature: -35~+100℃ Surface speed: ≤2m/s Material: XA-2092 is a high-performance nano-polyurethane material independently developed by Xipuli. Compared with other polyurethane materials currently available on the market, it exhibits better resistance to high and low temperatures, enhanced hydrolysis resistance, and minimal compression deformation.

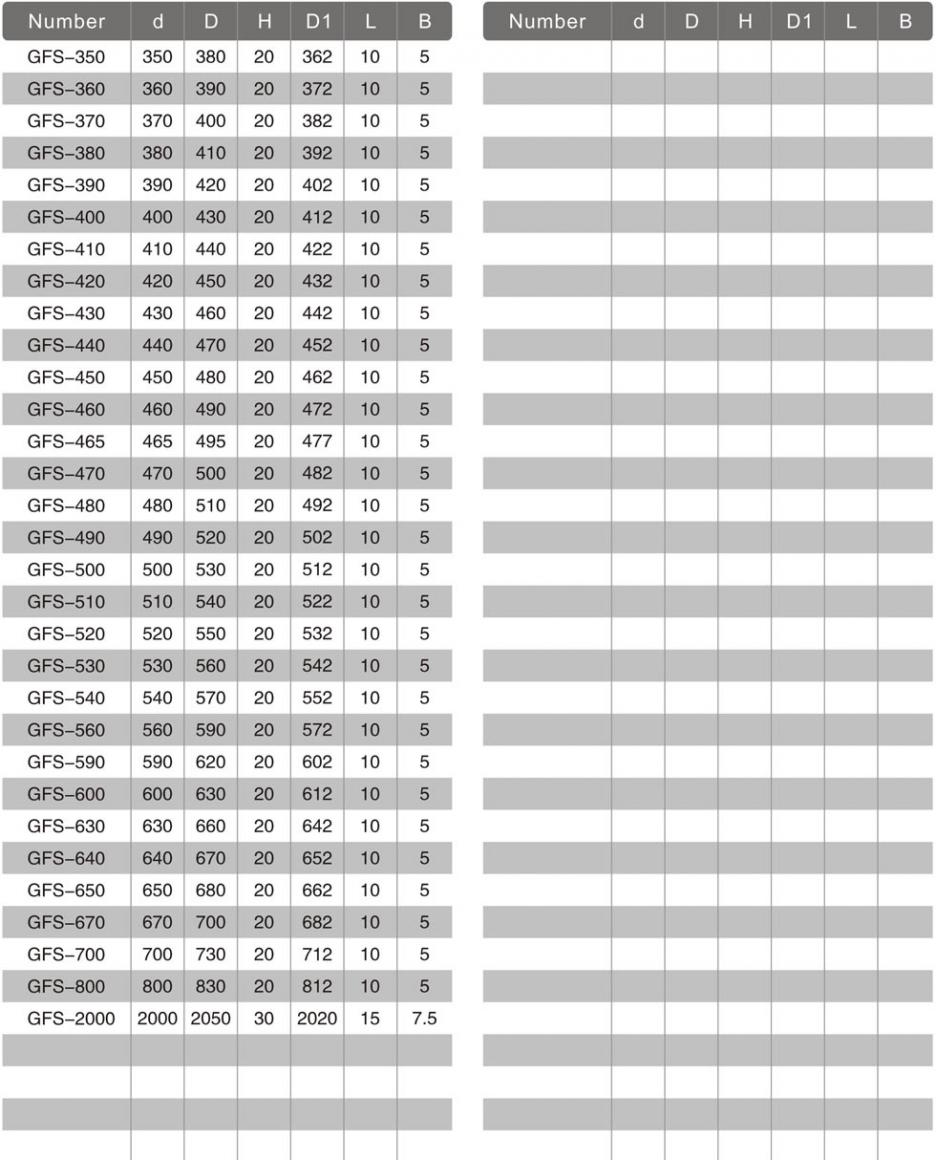

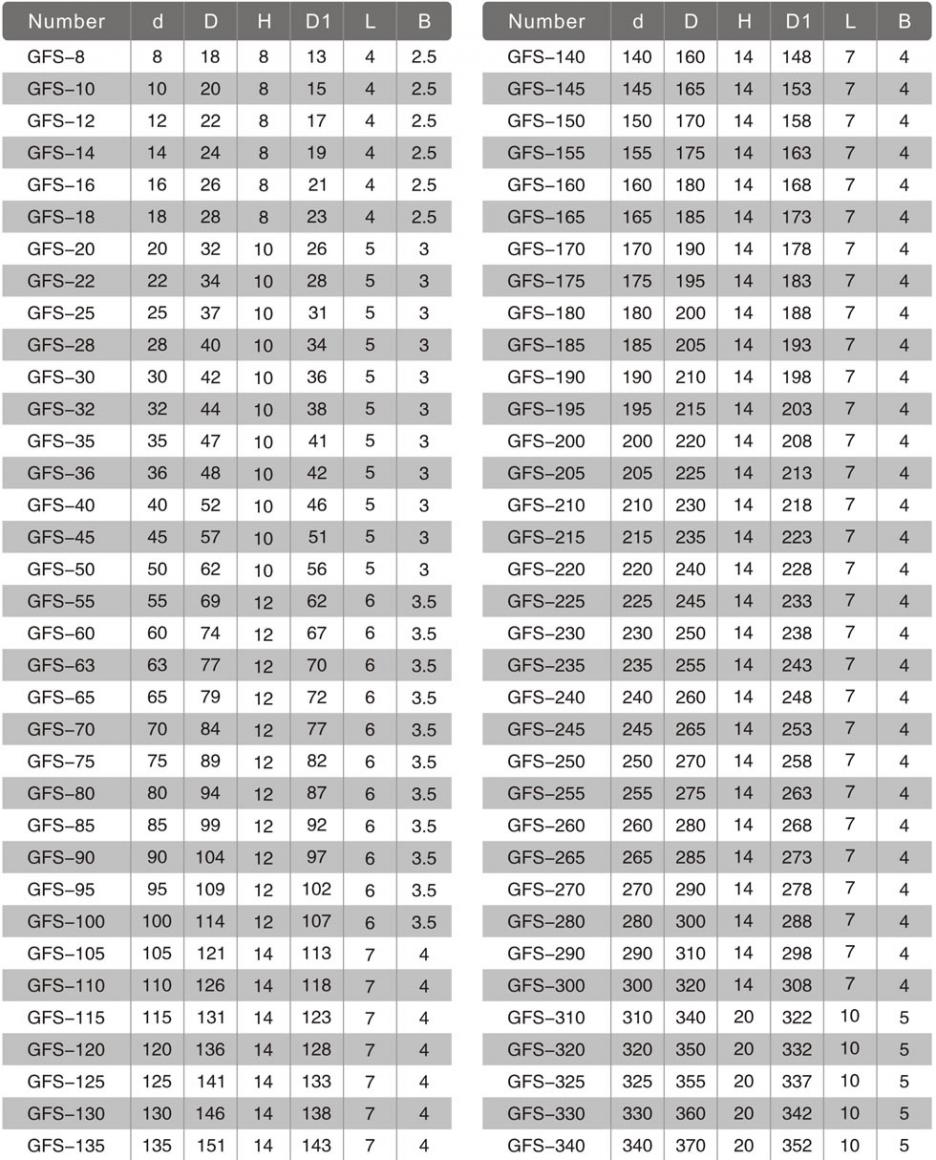

Products with a maximum diameter of 4500mm can be produced.
Installation: The GFS double-lip dust seal can be easily installed into a groove with a simple structure. It is wear-resistant and has a long service life. It is important to avoid contact between the lip and the piston rod eyelet or other connecting components. Additionally, it is best to install the dust seal lip outside the housing, as this makes it easier to remove contaminants.
Application scope: GFS double-lip dust seals are widely used in forging hydraulic presses, rubber vulcanizing machines, as well as various mechanical hydraulic cylinders and pneumatic cylinders.
Operating temperature: -35~+100℃ Surface speed: ≤2m/s Material: XA-2092 is a high-performance nano-polyurethane material independently developed by Xipuli. Compared with other polyurethane materials currently available on the market, it exhibits better resistance to high and low temperatures, enhanced hydrolysis resistance, and minimal compression deformation.
Products with a maximum diameter of 4500mm can be produced.
