V
CLASS：Pistion And Rod Seals
FEATURE：

COTACT US
TEl：0086-0576-83558888
E-Mail:postmaster@xipuli.com.cn

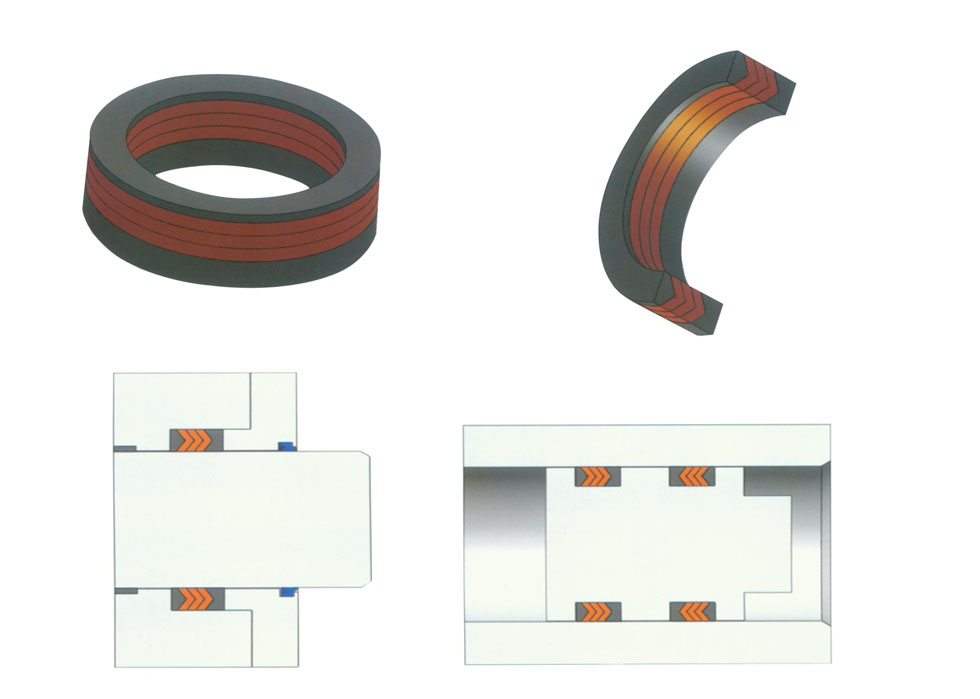

The V-shaped xipuli rubber composite seal is a high-strength dual-purpose seal for both shafts and holes, suitable for use in the metallurgical and mining industries as a dual-purpose seal for holes and shafts on high-pressure heavy-duty hydraulic cylinders.

Main advantages:

 ◆ Ultra-high operating pressure

 ◆ Adjustable to different liquids and temperature ranges by selecting appropriate materials

 ◆ Adaptive to special working conditions

◆ Due to the stability of the formation, insensitive to high pressure peaks

◆ Compared to single-piece seals, insensitive to medium contamination or minor damage to the sliding surface

◆ Due to the long contact area and multiple sealing lips, excellent sealing performance is achieved

◆ V-shaped seals have radial preload, ensuring tight contact on the outer diameter, thus achieving low friction and good sealing performance

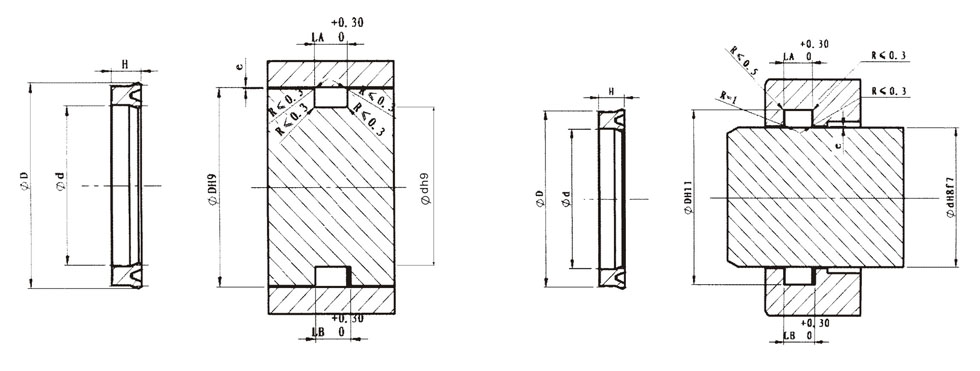

◆ The working pressure can effectively achieve tight fit between the seal and the mating surface, and through adjustable grooves (ring head screws or shims), optimal fit and sealing performance can be achieved. Due to this adjustment device, the seal can have a longer working life.

Application range: Operating pressure: ≤60Mpa Operating temperature: -40 to +100℃ Surface speed: ≤0.5 m/s Even under harsh working conditions, the V-shaped seal is suitable for sealing plunger, piston, valve shaft, and valve core. Therefore, these seals are recommended for use in unpredictable practical situations.
