GTS
CLASS：Pistion And Rod Seals
FEATURE：

COTACT US
TEl：0086-0576-83558888
E-Mail:postmaster@xipuli.com.cn

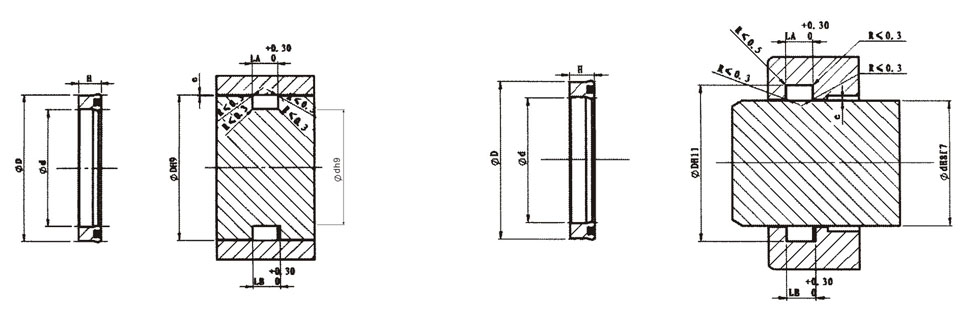

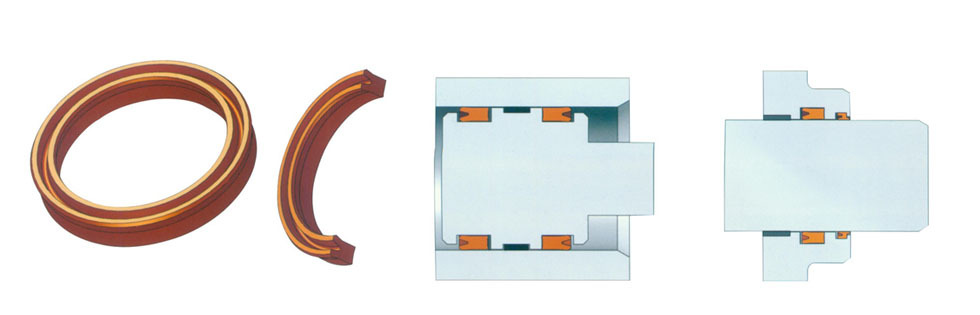

The GTS type is a commonly used large-section shaft hole universal hydraulic seal, suitable for hydraulic cylinders with high pressure. Its groove dimensions are interchangeable with those of the UNS type seals, and it is widely used in hydraulic systems of general machinery and equipment. Due to its structural design, which is suitable for both piston sealing and piston rod sealing, it is not recommended for working conditions with high sealing requirements. Its sealing effect is inferior to that of dedicated piston seals or dedicated piston rod seals.

Main advantages:

◆ Strong universality and convenient selection

◆ Good wear resistance

◆ Small compression deformation

◆ Extremely convenient installation Application range: Working pressure: ≤35Mpa Working temperature: -30~+100℃ Surface speed: ≤0.5 m/s Hardness: 92A+2 Mainly used for piston sealing or piston rod sealing on ordinary hydraulic cylinders.

Material: XA-2092 is a nano-modified high-performance polyurethane material independently developed by xipu1. Compared with other polyurethane materials currently available on the market, its main advantages include improved high-temperature resistance, enhanced hydrolysis resistance, and reduced compression deformation.
