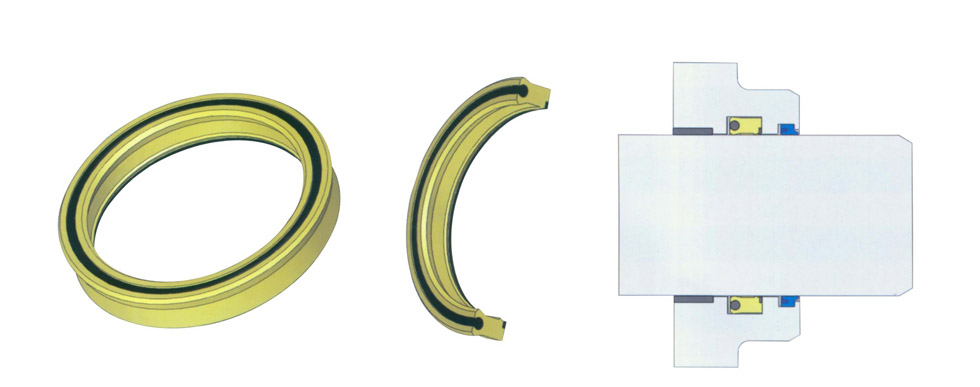

The GBD type xipuli piston rod seal is the most perfect development outcome of lip seals. It features two sealing lips and a retaining ring with strong extreme pressure resistance. Due to the effect of the two sealing lips, additional lubrication is maintained in the sealing gap, greatly preventing dry friction and wear, thereby extending the service life of the seal. Under certain conditions, satisfactory sealing performance can only be achieved through the use of two sealing elements, one positioned before and one positioned after, installed in their respective grooves. However, these two-lip seals can replace expensive tandem devices.
Main advantages:
◆ Excellent wear resistance
◆ Extrusion resistance
◆ Impact resistance
◆ Small compression set
◆ Suitable for the most demanding working conditions
◆ Due to the pressure medium between the sealing lips, it has
◆ Adequate lubrication
◆ Improved sealing performance under zero pressure
◆ Excellent prevention of external air ingress
◆ Easy to install Application range: Working pressure: ≤50Mpa Working temperature: -35~+120℃ (peak up to 140℃) Surface speed: ≤0.5m/s Hardness: 95A±2 Mainly used for sealing of heavy-duty traveling machinery and piston rods and plungers in hydrostatic applications.

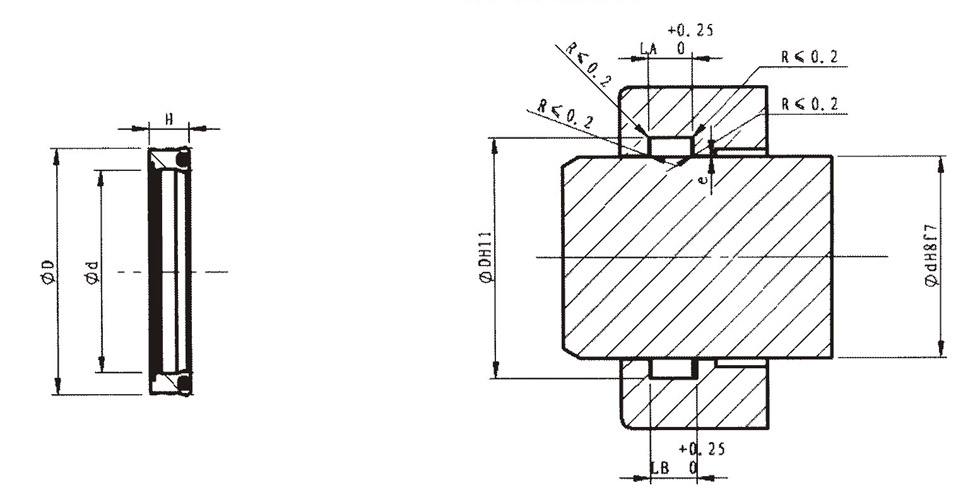

Materials: XA-6095 is a high-temperature resistant polyurethane composite material of A95, and the O-ring is made of 70A NBR material. Installation: This type of seal should have axial clearance. To avoid damage to the sealing lip, do not pull the seal over sharp edges during installation
