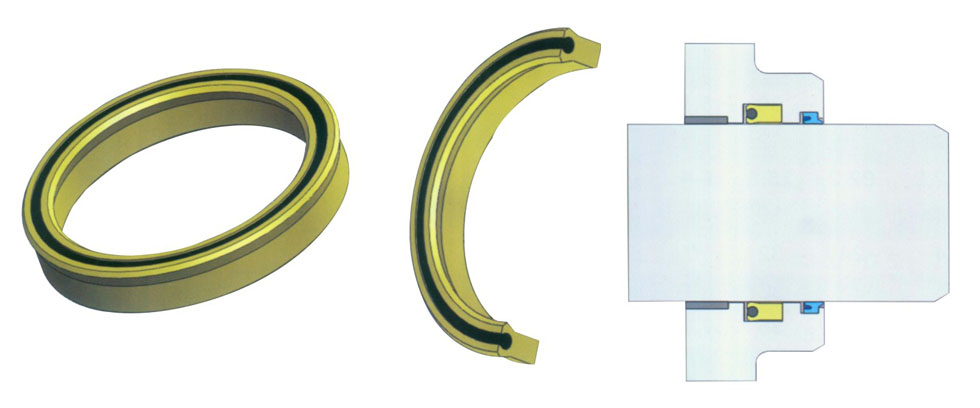

The GBA type xipuli piston rod seal is a further development of the lip seal, combining the advantages of high elasticity of the O-ring and wear resistance of the lip seal material. This special seal is primarily used in mobile equipment due to its unique assembly of the O-ring, which ensures a pre-compression amount of the sealing gap under low pressure and vacuum conditions. The sealing force is essentially independent of temperature changes. Furthermore, even if some degree of wear occurs, it will still ensure the necessary compression amount. The lip is loaded due to an increase in system pressure, which is transmitted to the lip through the deformed O-ring under pressure.
Main advantages:
◆ Exceptionally strong wear resistance.
◆Insensitivity to vibration loads and pressure peaks · High resistance to compression · Ideal sealing performance under no-load and low-temperature conditions
◆Suitable for the most demanding working conditions Scope of application: Working pressure: ≤35Mpa Working temperature: -40~+100℃ (peaks up to 120℃) Surface speed: ≤0.5m/s When selecting seals for special diameters, it is best to choose those with the largest possible cross-section. Primarily used for sealing plungers, piston rods, air drills, hydraulic cylinders, forging presses, and hydraulic equipment for mobile equipment.

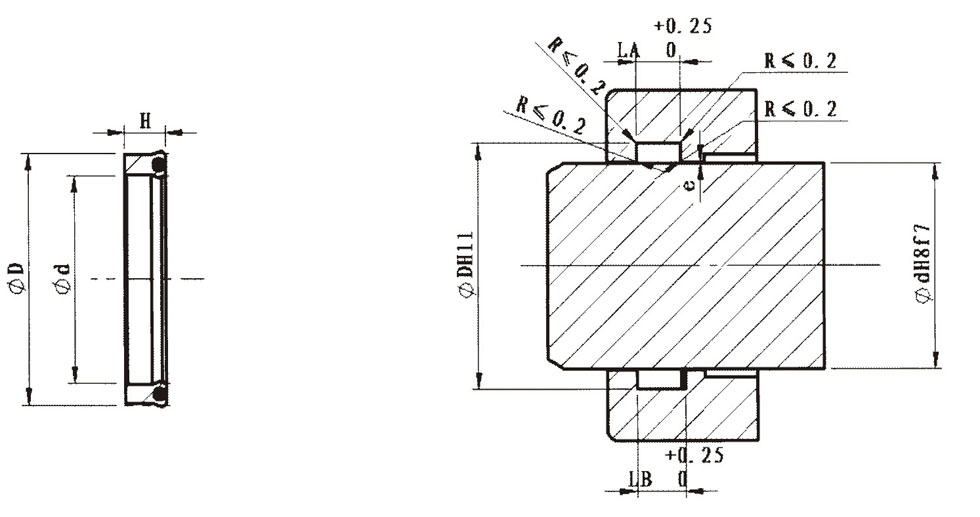

Installation: These seals should have axial clearance. To avoid damage to the sealing lip, do not pull the seal along sharp edges during installation. Material: XA-5095 is a low-temperature polyurethane composite material independently developed by Xipuli, and the O-ring is made of 70A nitrile rubber.
