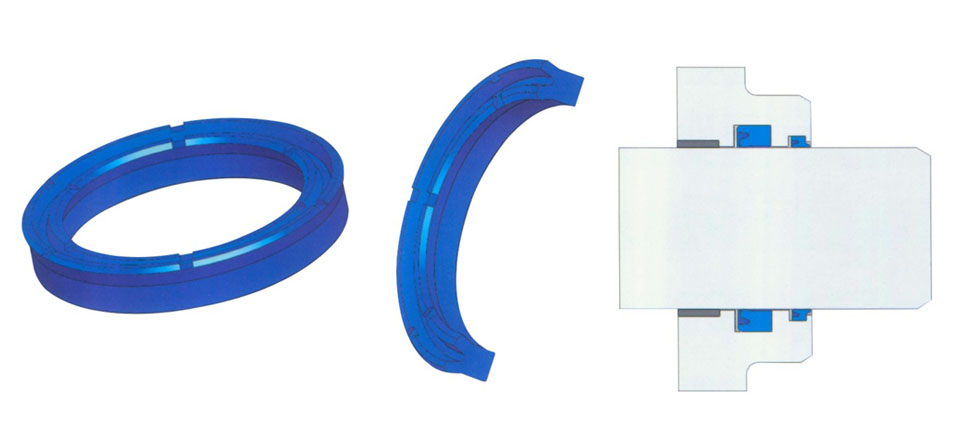

The UNR type xipuli piston rod seals are interchangeable and universal with the Walka UNR type grooves in terms of dimensions
Main advantages
◆ Large cross-section design, suitable for a wide pressure range.
◆ It has good water resistance and durability.
◆ Improvements have been made to prevent damage caused by back pressure.
◆Improvements have been made to prevent crawling,
◆ It utilizes materials with excellent low-temperature resistance.
◆ It can also be used for hydraulic oil with extremely low temperatures. Scope of application
Working pressure: ≤40Mpa
Operating temperature: -30~+100℃
Surface speed: ≤0.8m/s
Hardness: 92A±2
It is mainly used for sealing piston rods and plungers of hydraulic cylinders in the walking machinery, outdoor machinery, and agricultural machinery industries.

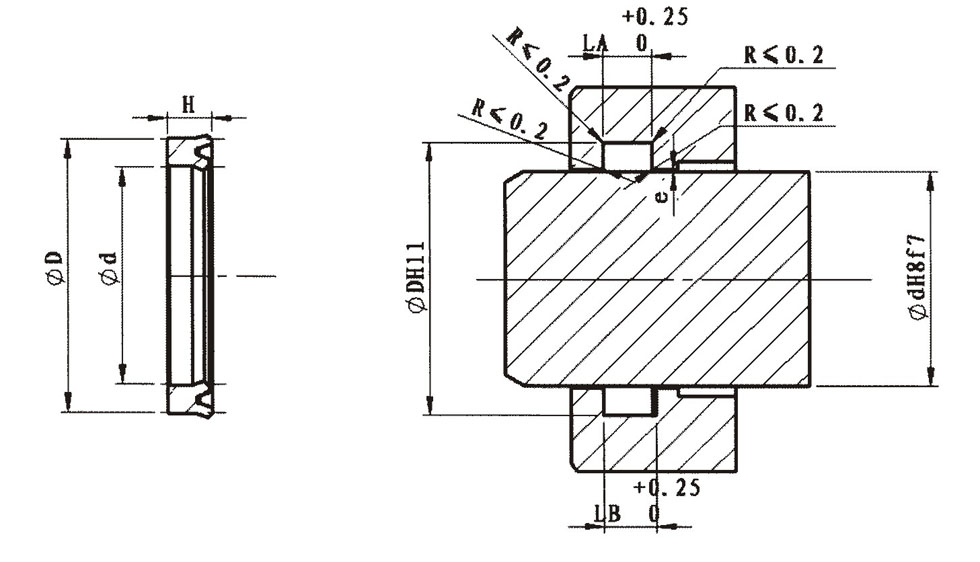

Installation: These seals should have axial clearance. To avoid damage to the sealing lip, do not pull the seal over sharp edges during installation.
Material: XA-2092 is a nano-modified high-performance polyurethane sealing material independently developed by Xipuli. It exhibits excellent high-temperature resistance and hydrolytic stability, with minimal compression deformation.
Main advantages
◆ Large cross-section design, suitable for a wide pressure range.
◆ It has good water resistance and durability.
◆ Improvements have been made to prevent damage caused by back pressure.
◆Improvements have been made to prevent crawling,
◆ It utilizes materials with excellent low-temperature resistance.
◆ It can also be used for hydraulic oil with extremely low temperatures. Scope of application
Working pressure: ≤40Mpa
Operating temperature: -30~+100℃
Surface speed: ≤0.8m/s
Hardness: 92A±2
It is mainly used for sealing piston rods and plungers of hydraulic cylinders in the walking machinery, outdoor machinery, and agricultural machinery industries.
Installation: These seals should have axial clearance. To avoid damage to the sealing lip, do not pull the seal over sharp edges during installation.
Material: XA-2092 is a nano-modified high-performance polyurethane sealing material independently developed by Xipuli. It exhibits excellent high-temperature resistance and hydrolytic stability, with minimal compression deformation.
