SPGO
CLASS：Seal For Piston(Hole)
FEATURE：

COTACT US
TEl：0086-0576-83558888
E-Mail:postmaster@xipuli.com.cn

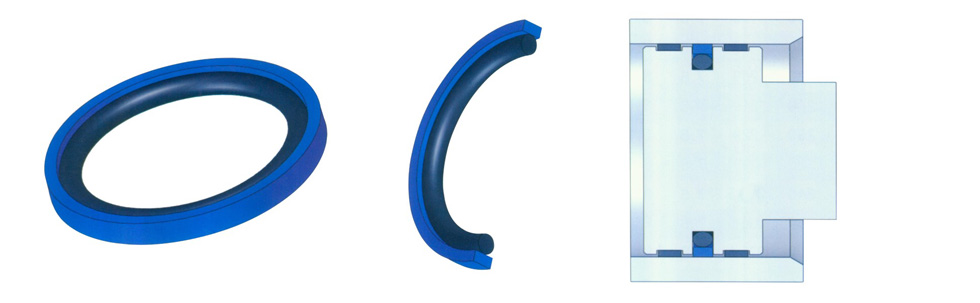

The SPGO type xipuli hole-used gland ring is composed of a PTFE-bronze composite or high-hardness polyurethane piston sealing ring and an O-ring, with bidirectional sealing provided by the piston.
SPGO seals are particularly suitable for controlling cylinder servo systems, machine tools, fast-response cylinders, and bidirectional piston cylinders in construction equipment.

Main advantages:

 ◆ Suitable for integrated pistons

◆ Small installation size

◆ Extremely low starting and moving friction, ensuring smooth movement even at low speeds without any creeping

◆ Resistant to wear

◆ Resistant to compression

◆ High-temperature material options available

◆ Due to the sealing ring\'s high chemical resistance and the option to choose O-rings and sealing rings of different materials, SPGO seals can be applied to almost all media. Due to the special shape of the sealing structure, it has good oil film return characteristics

◆ Products up to a diameter of 2000mm can be provided
