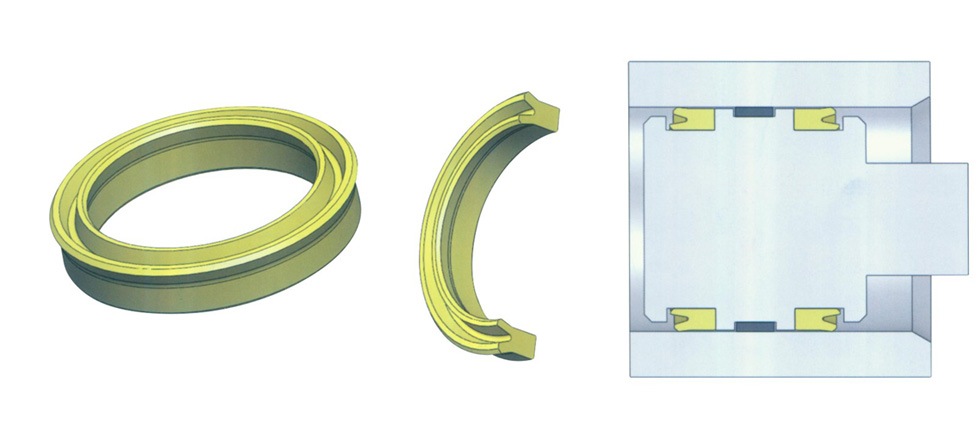

The GB7 type xipuli piston (hole-use) seal and the Parker B7 groove dimensions are interchangeable and universally applicable.
Material: XA-3093 is a high-performance polyurethane composite material independently developed by Xipuli Guang. Compared with other polyurethane materials currently available on the market, its main advantages include excellent heat resistance, with a long-term temperature tolerance of up to 110°C, low temperature resistance down to -62°C, enhanced hydrolysis resistance, and minimal compression deformation.
Main advantages:
◆ Excellent wear resistance
◆ Extrusion resistance
◆ Impact resistance
◆ Small compression deformation
◆ Adaptability to the harshest working conditions
◆ Excellent high and low temperature resistance
◆ Long service life
◆ Easy to install
Application range: Working pressure: ≤40Mpa Working temperature: -45~+110℃ Surface speed: ≤0.8m/s Mainly used for piston seals in heavy-duty mobile machinery and hydrostatic applications.
When installing seals such as O-rings, there should be axial clearance. To avoid damage to the sealing lip, do not pull the seal over sharp edges during installation. Such sealing surfaces can usually be installed into enclosed grooves.Material: XA-3093 is a high-performance polyurethane composite material independently developed by Xipuli Guang. Compared with other polyurethane materials currently available on the market, its main advantages include excellent heat resistance, with a long-term temperature tolerance of up to 110°C, low temperature resistance down to -62°C, enhanced hydrolysis resistance, and minimal compression deformation.
