CLASS：Seal For Piston(Hole)
FEATURE：

COTACT US

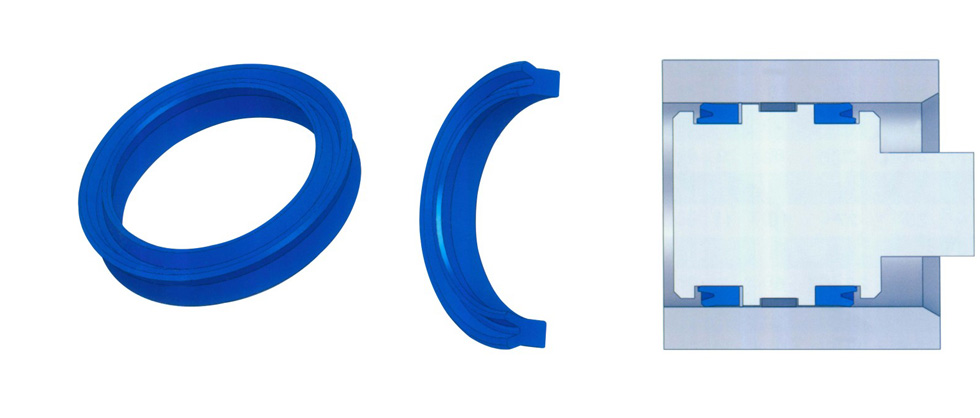

The sealing components for the GK type xipuli piston holes are compatible and interchangeable with the sealing grooves of Taiwan Dingji D-1, NOK\'s OS1, and ODI piston holes.

Main advantages:

◆ Excellent wear resistance

◆ Impact resistance

◆ High pressure resistance

◆ Small compression deformation

◆ Extrusion resistance

◆ Easy to install

Application range: Working pressure: ≤40Mpa Working temperature: -30~+110℃ Surface speed: ≤0.5m/s Medium: Hydraulic oil (mineral oil base) Mainly used for piston seals in heavy-duty mobile machinery and hydrostatic applications, as well as piston seals in ordinary hydraulic cylinders.

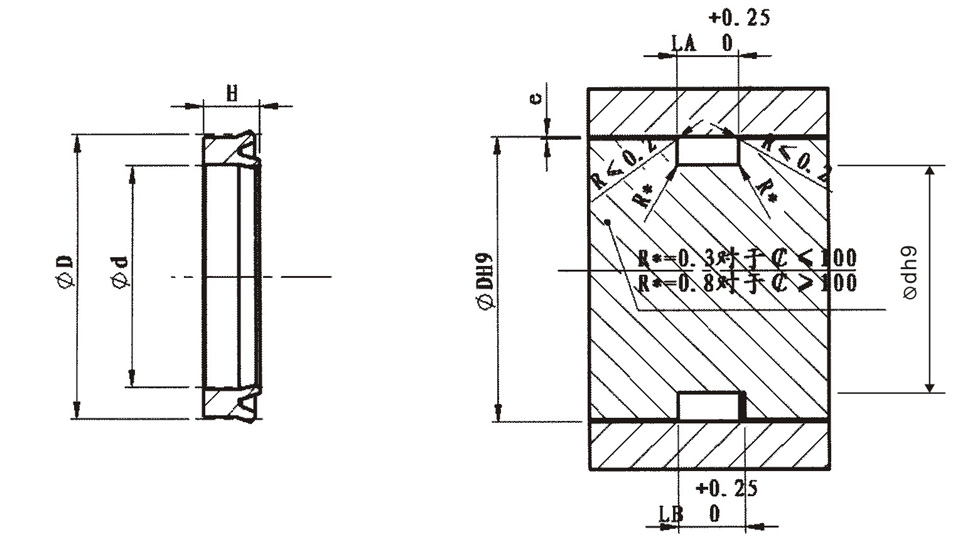

Installation: These seals should have axial clearance. To avoid damage to the sealing lip, do not pull the seal over sharp edges during installation. These seals can usually be installed into enclosed grooves. When the entry is restricted, special installation tools may be required. If requested by the user, our company will provide a design plan for such tools.
Material: XA-1095 is a nano-modified high-performance polyurethane material independently developed by Xipuli. Compared with other polyurethane materials currently on the market, its main advantages include improved heat resistance, better hydrolysis resistance, superior aging resistance, smaller compression set, and longer service life.
If you have other special requirements (pressure, temperature, speed, use in water, HFA fluid, HFB fluid, etc.), please contact our company so that we can recommend suitable materials and structures to you.
